Self-Centering Sign Setter Installation Tool
Self-Centering Sign Setter Installation Tool
Center the sign while establishing a consistent mounting position. The Self-Centering Sign Setter helps installers maintain repeatable horizontal placement and mounting height across interior signage projects.
Couldn't load pickup availability
Product Details
Specifications & What’s Included
What’s Included
- Self-Centering Sign Setter installation tool
- Monopod
- Adjustable sign supports
- Built-in bubble level
Specifications
- Aluminum construction
- Yellow gloss finish
- 19” fully closed
- Extends up to 37”
- Adjustable mounting height when used with the included monopod
- Two-ruler centering system
- Front ruler measures inward from either end
- Rear ruler sets the sign width to establish the center position
- Adjustable sign supports lock into position for repeatable placement
- Extruded aluminum body with T-slots
- Tool can be used with or without the included monopod
How the Centering System Works
Set the rear ruler to the width of the sign, then extend the tool across the installation area. The opposing measurement system establishes the center point, helping position the sign consistently without measuring inward from each side at every location.
Installation
Extend the tool to the required width and lock the extension in place. Center the tool at the installation location, adjust the mounting height as needed, position the sign on the supports, and install. Once your setup is established, it can be repeated from location to location.
Monopod: Included with this model.
-
Consistent Placement
Maintain uniform sign positioning from one location to the next.
-
Faster Installation
Reduce repetitive measuring and setup when installing multiple signs.
-
Repeatable Process
Create a straightforward installation method your team can repeat throughout a project.

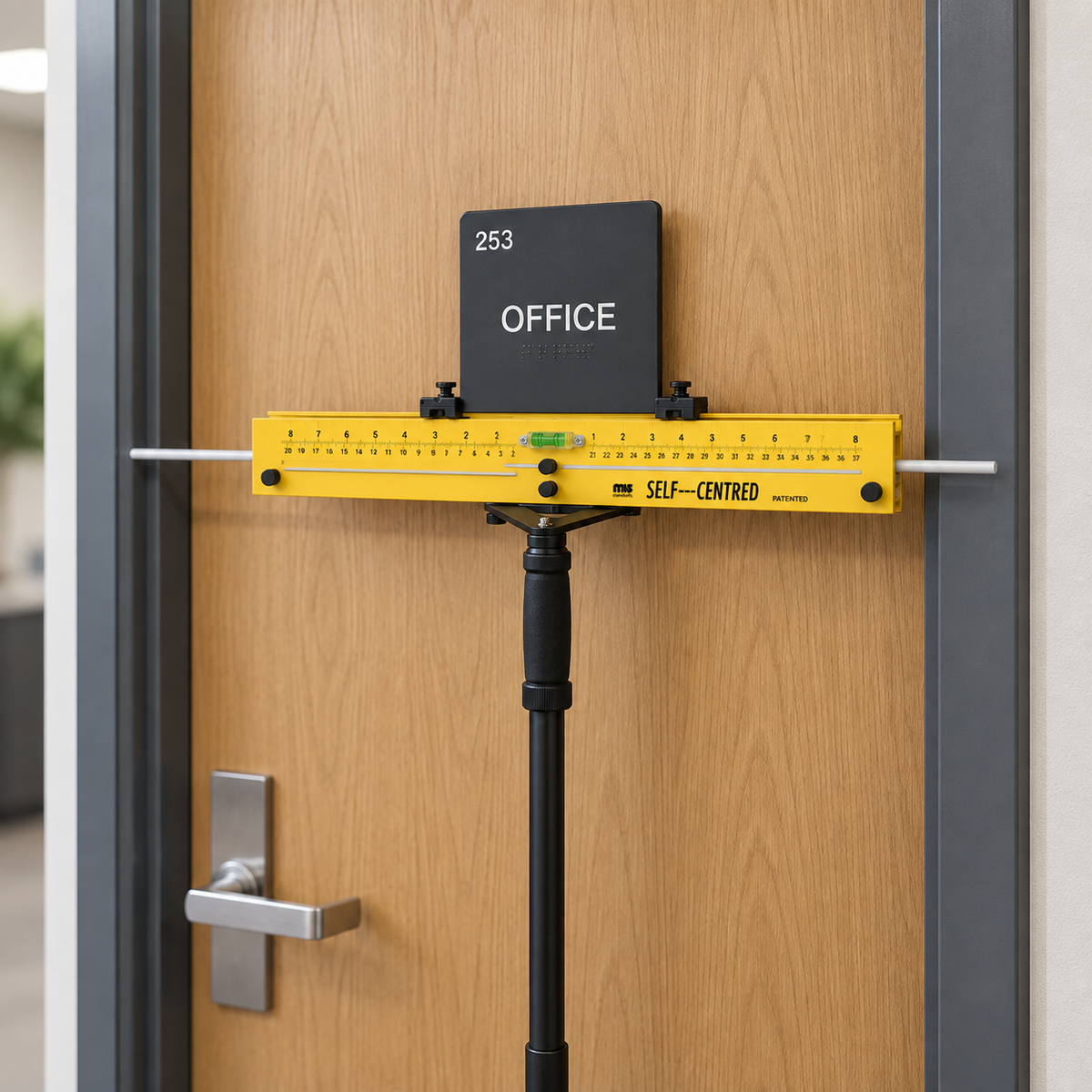

Center It Once. Repeat It Throughout the Project.
Instead of measuring horizontal placement from each side of the door frame at every location, the Self-Centering Sign Setter establishes the center point for you while also providing a repeatable mounting-height reference.

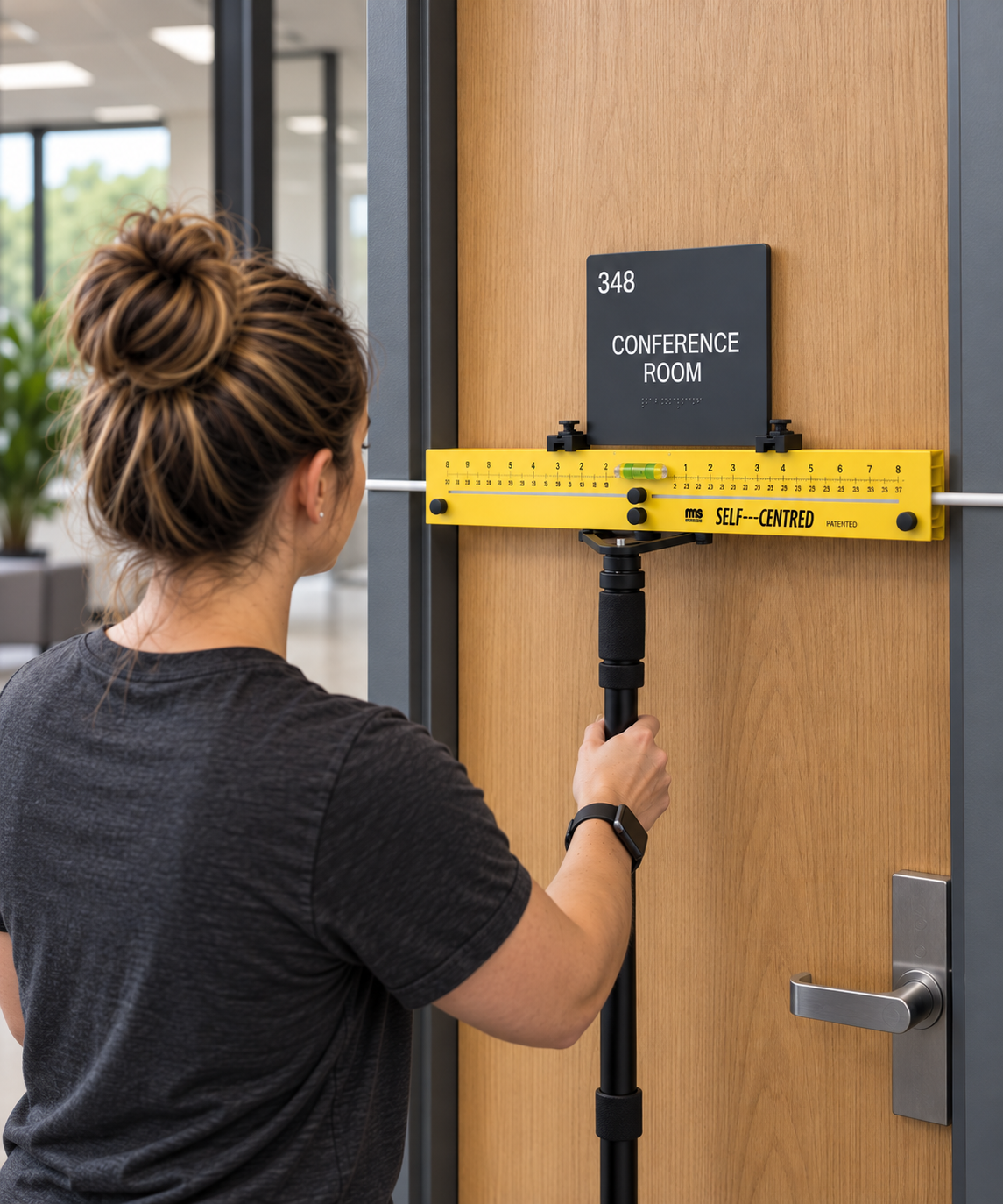

Center the tool on the door frame, set your mounting position, then repeat the same process from room to room. Across facilities with dozens or hundreds of signs, it can reduce repetitive measuring while helping maintain consistent placement throughout the project.
